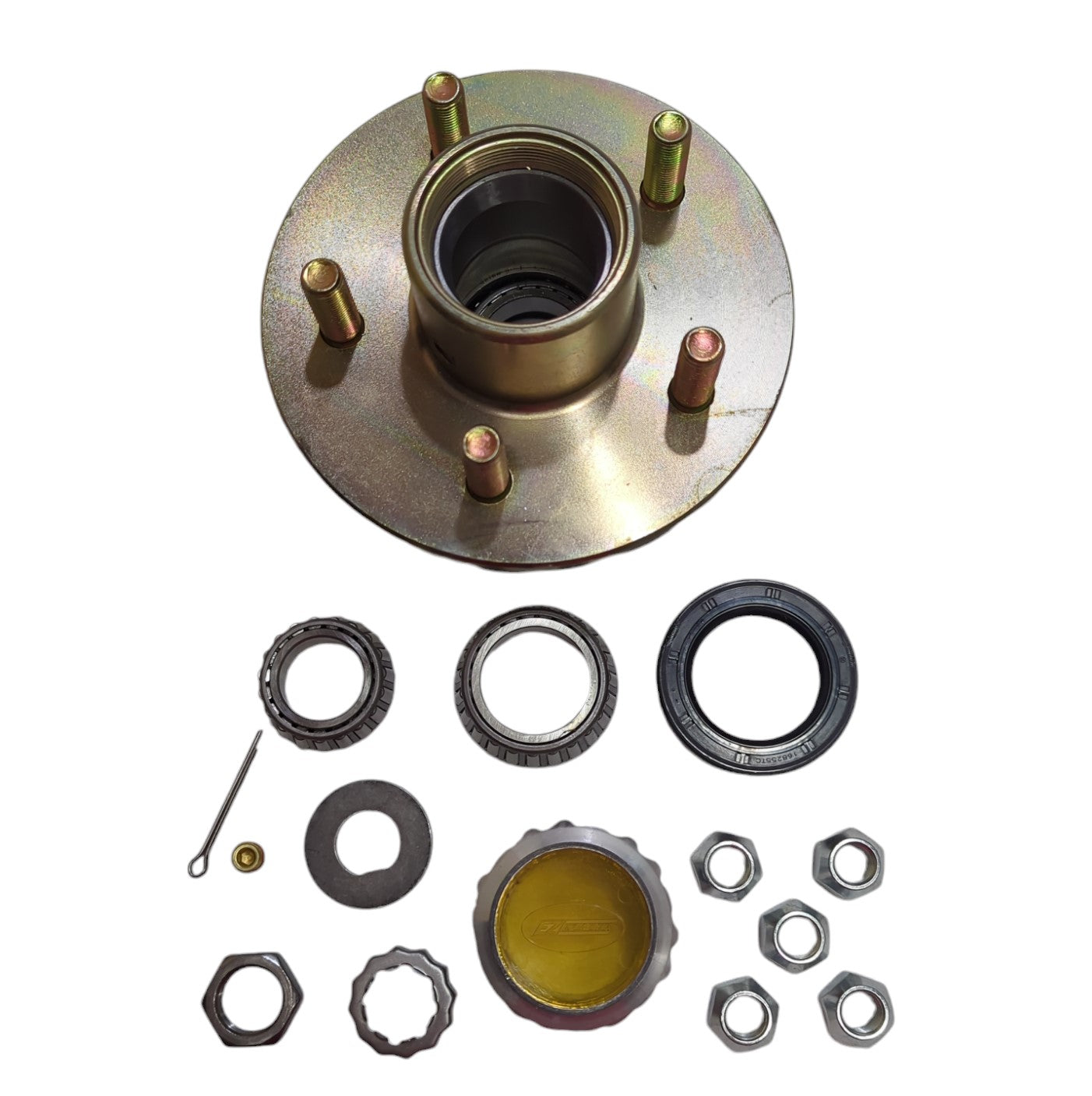

EZ Loader Boat Trailer replacement 5 lug H1000 oil bath hub kit. The H1000 hub fits on EZ Loader 1-3/8 x 1-1/16 tapered spindle axle. 5 lugs with 4.5" bolt pattern, studs are 1 3/8" long. Kit includes inner and outer bearings, oil seal, oil cap, washer, nut, and cotter pin. The wheel studs and races are already pressed in from the factory. Please note that EZ Loader sources their hubs from different suppliers. There may be slight variations in appearance, but fitment remains the same.
H1000 EZ Loader Wheel Hubs - The H1000 style hub is typically seen on the mid-range capacity trailers.The H1000 hub is available in grease or oil bath.The grease version will have a bearing protector that screws onto the front of the hub and the oil bath version will have an aluminum cap with a yellow sight glass in the center, where the oil level inside the hub can be seen. The H1000 has a diameter of about 6-1/2” and the circumference of the hub is solid.When the hub is removed, you will find the hub uses different bearings.The inner bearing is 1-3/8” ID and outer bearing 1-1/16 ID.The spindle (the part on the axles that the hub mounts to) diameter will be smaller at the threads and taper in size up to the spindle sleeve.
